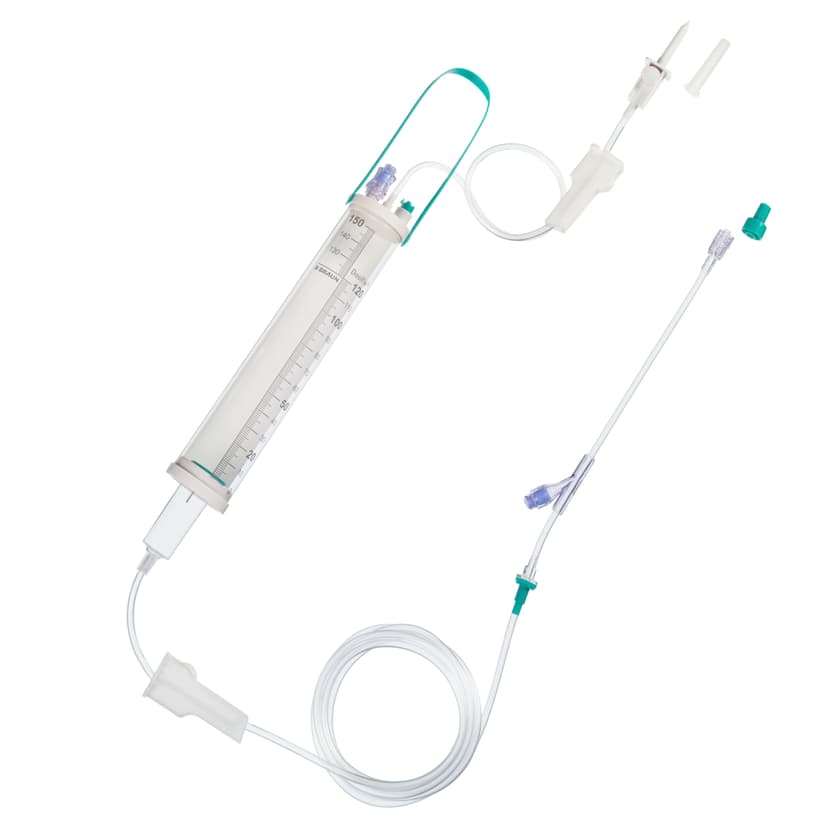

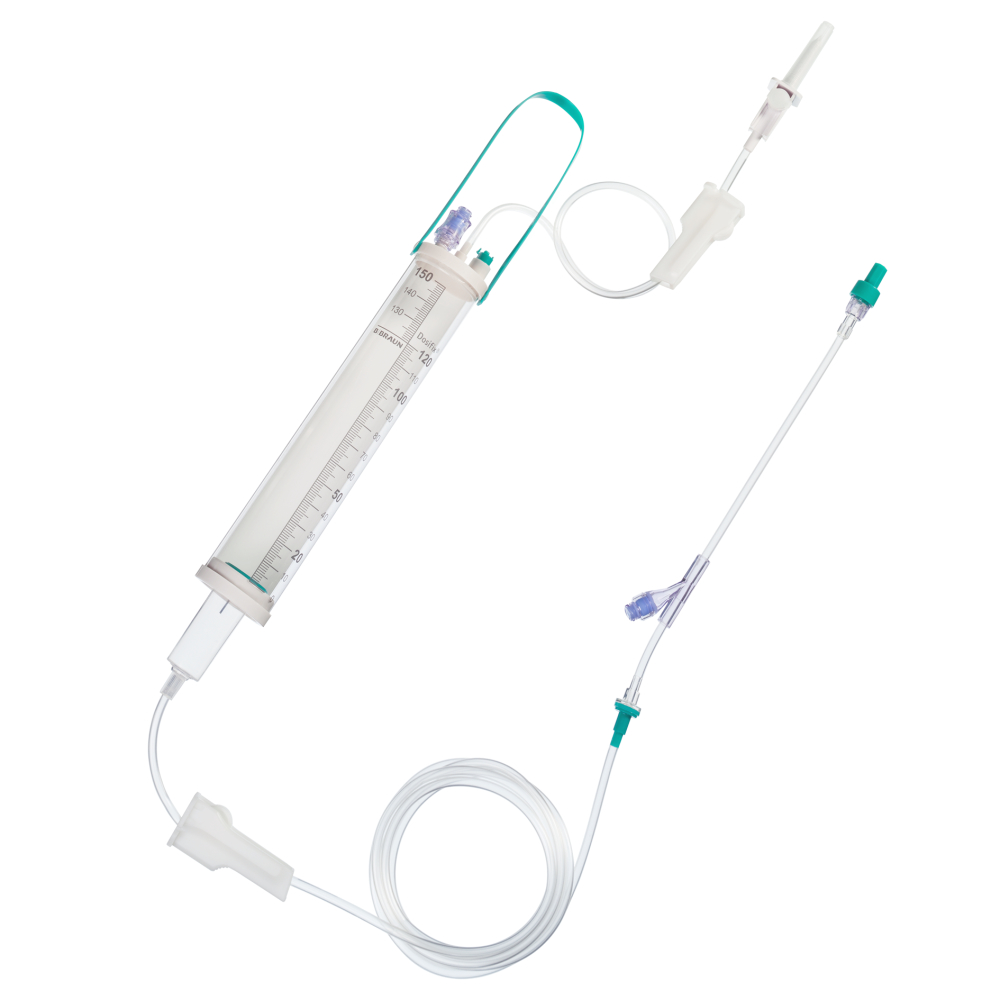

Dosifix® SafeSet | B. Braun4037012Dosifix® SafeSet
Doseringsaggregat
- Varumärke
- Dosifix®
- Produktnamn (HC)
- Dosifix®
- Product type
- IV admin set w.dosing contain.
- Application
- Infusion
- Type of administration set
- Pressure
- Container connector
- Flushing spike
- Längd
- 250 cm
- Inner-ø tube
- 3.00 mm
- Outer-ø tube
- 4.10 mm
- Priming volume
- 19.450 ml
- Typ av filter
- Fluid filter AirStop
- Filterens placering
- Drip chamber
- Particle retention [µm]
- 3 µm
- drops/ml
- 60
- Air ventilation
- vented
- Flow control device
- Roller clamp
- with AirStop
- Yes
- with PrimeStop
- Yes
- Number of back check valves
- 1
- Number of needle-free valves
- 2
- Number of Injection Access
- 2
- Injection access
- needle-free
- Type of Injection Access
- Safeflow
- Burette
- 150.00 ml
- Connection
- Spin-Lock
- Light-protected
- No
- Color of light protection
- -
- Pump compatibility (Type)
- Infusomat® compact plus P, Infusomat® Space P
- max. tryck
- 2.0 bar
- Material
- PVC
- Catalogue attribute
- -
- Typ av förpackning
- Peel pack
- Produkten (ouppackad) innehåll
- Ja
- Produkten innehåller Latex
- Nej
- Produkten (ouppackad) innehåll
- Nej
- Produkten innehåller Latex
- Nej
- Sterilitet
- Nej
- Produkten innehåller PVC
- Ja
- Produkten innehåller latex
- nej
- Produkten innehåller DEHP
- Nej
- Produkten innehåller Nickel
- Ja
- Product contains BPA
- No
- Engångs-/flergångsbruk
- engångs
- Sterilitet
- steril
- Typ av sterilisering
- EO
- Längd (tum)
- 98 3/8"
