CERTOFIX TRIO HF S 1220 | B. Braun- Hem

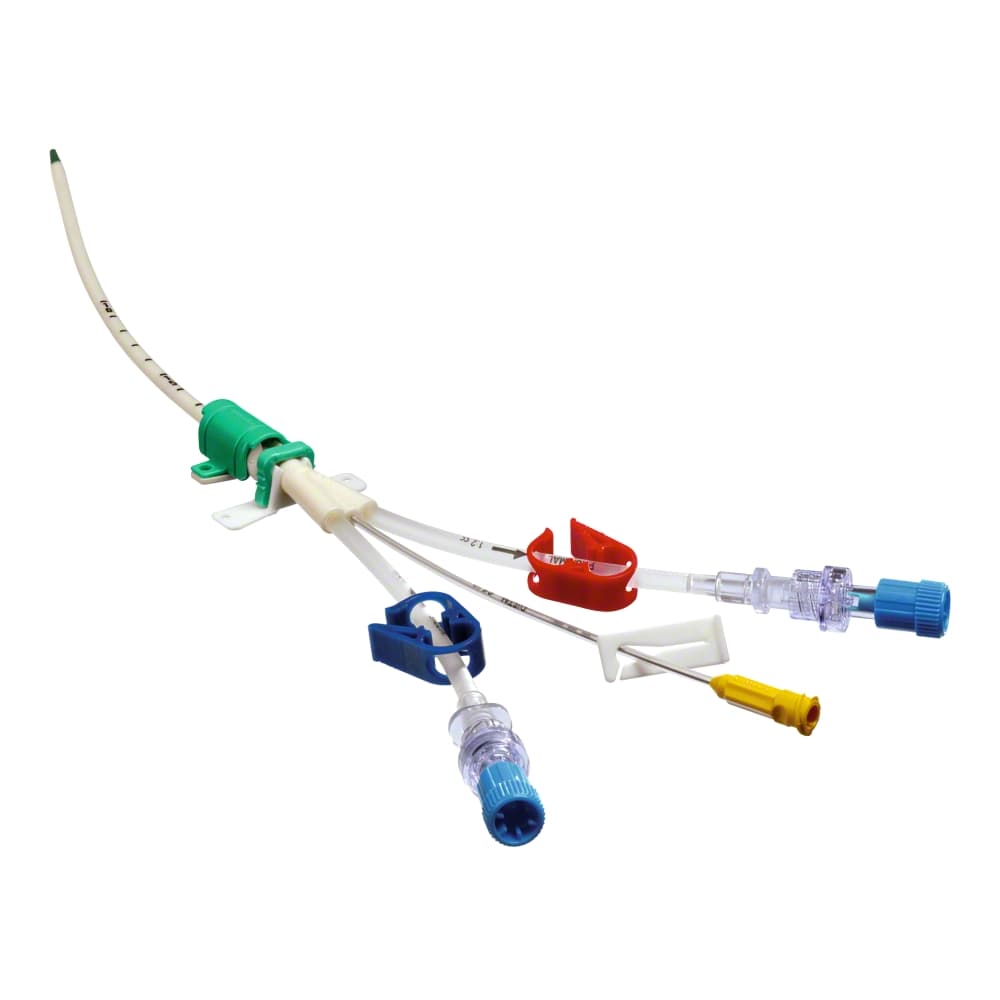

CERTOFIX TRIO HF S 1220
4160586-07CERTOFIX TRIO HF S 1220
- Varumärke
- Certofix®
- Produktnamn (HC)
- Certofix® Trio
- Product type
- Central venous catheter
- Introduction technology
- Seldinger
- Venous access site
- jugularis, subclavia, axillary
- Material of catheter
- PUR
- Number of lumen
- 3
- Fransk F (kateter)
- 12.0 Fg
- Kateterlängd
- 20 cm
- Längd (tum)
- 8"
- Ytterdiam. kateter (metr.)
- 4.00 mm
- Längd på styrtråd
- 50.0 cm
- Outer-ø of guidewire
- 0.890 mm
- with kink proofed guide wire
- Yes
- Gauge (distal)
- 16
- Priming volume (distal)
- 0.47 ml
- Flow rate (distal)
- 47 ml/min
- Gauge (medial 1)
- 12
- Priming volume (medial 1)
- 1.13 ml
- Flow rate (medial 1)
- 150 ml/min
- Gauge (medial 2)
- -
- Gauge (medial 3)
- -
- Gauge (proximal)
- 12
- Priming volume (proximal)
- 1.10 ml
- Flow rate (proximal)
- 165 ml/min
- Type of cannula
- Seldinger
- Gauge (Cannula)
- 18
- Outer-ø cannula (mm)
- 1.30 mm
- Length of cannula (mm)
- 70 mm
- Length of cannula (inch)
- 2 3/4"
- Outer-ø tube
- 1.95 mm
- Inner-ø tube
- 1.40 mm
- Slanglängd
- 135.00 mm
- ECG-Cables
- Yes
- enclosed Connector
- Safsite
- incl. scalpel
- Mini
- with syringe
- 5 ml
- Typ av förpackning
- Peel pack
- Produkten (ouppackad) innehåll
- Ja
- Produkten innehåller Latex
- Nej
- Sterilitet
- Nej
- Produkten innehåller PVC
- Ja
- Produkten innehåller latex
- nej
- Produkten innehåller DEHP
- Nej
- Produkten (ouppackad) innehåll
- Nej
- Produkten innehåller Latex
- Nej
- Produkten innehåller Nickel
- Ja
- Engångs-/flergångsbruk
- engångs
- Sterilitet
- steril
- Typ av sterilisering
- EO
- Antimicrobial Catheter
- non-coated
- High Flow Sets
- Yes
- Safety Sets
- No
- Paed Sets
- No
